Product Description

The plate magnet consists of an internal magnet and a stainless steel outer shell. The magnet typically uses ferrite magnets or rare-earth strong magnetic materials. The plate magnet is mainly used to remove larger ferromagnetic impurities, such as iron nails, screws, and iron wire segments, from block, granular, and powdered materials, thereby protecting downstream production line equipment and improving the purity of the material. The size and magnetic strength of the plate magnet can be customized according to the actual needs of the customer's production line, and the surface is generally made of 304 or 316 stainless steel. To facilitate installation, accessories such as hinges and lifting rings can be added.

Optional Features
Surface finishing	Fine polishing,satin finish or sandblasting,food grade standard is attainable.
Frames and housing material	SUS304,SUS316,SUS316L
Magnet	Rare-earth magnet or Ferrite
Magnetic strength	10,000Gs~15,000Gs
Working temperature(℃)	≤80,100,120,150,180,350
Type of mounting	Hinge,hang ring, latch,screw thread rod etc.
Various designs available	Flush face,Spout magnet plate,suspended plate magnet

•Support customization

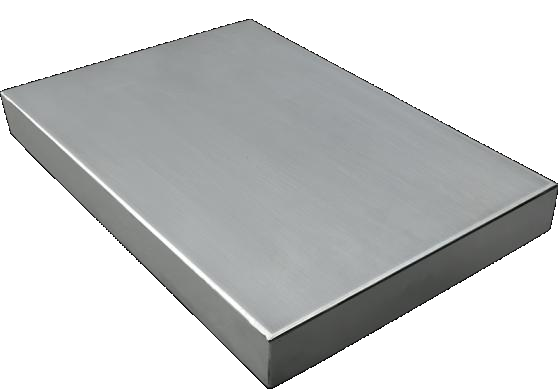

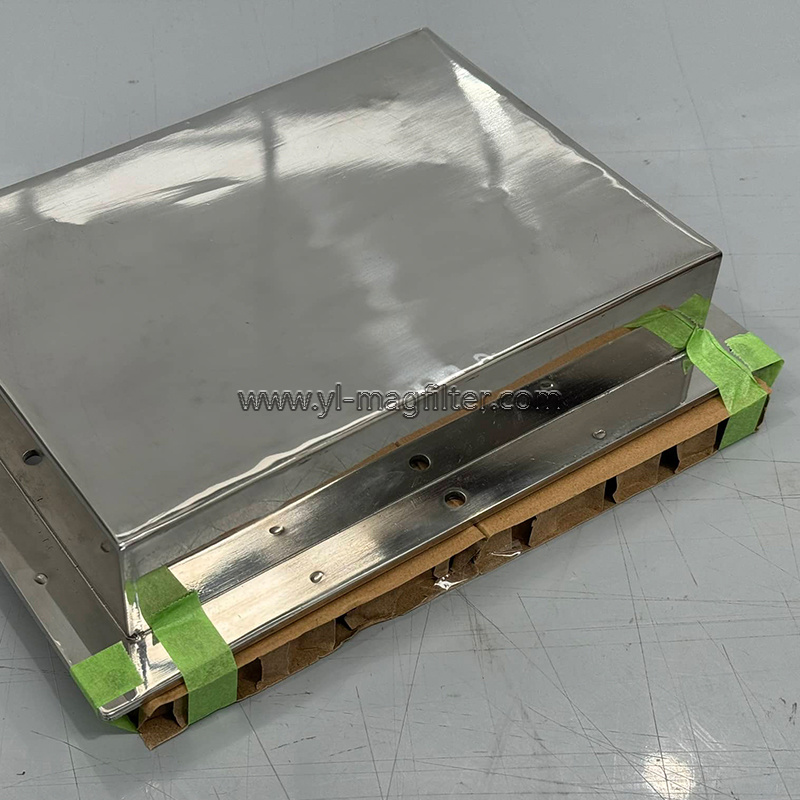

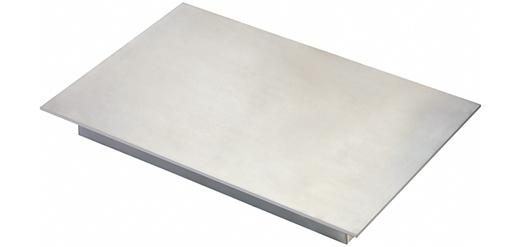

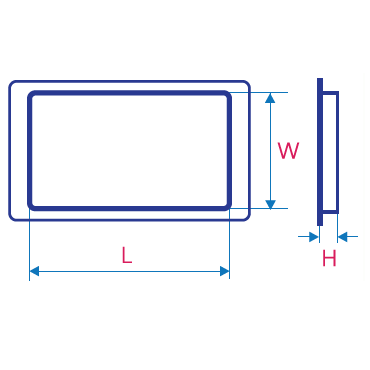

Flush Face Magnets Plate:

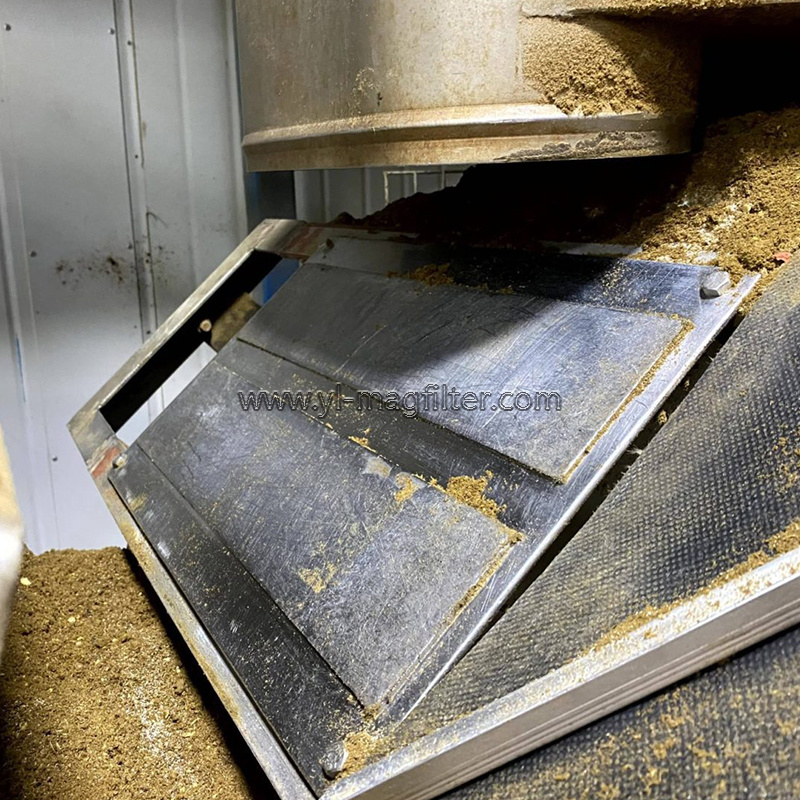

The Spout Magnet Plate is capable of removing iron impurities from high-volume material flow to the greatest extent. Its unique inclined design prevents iron substances from being washed away by the high-speed material flow, and it is also easy to clean.

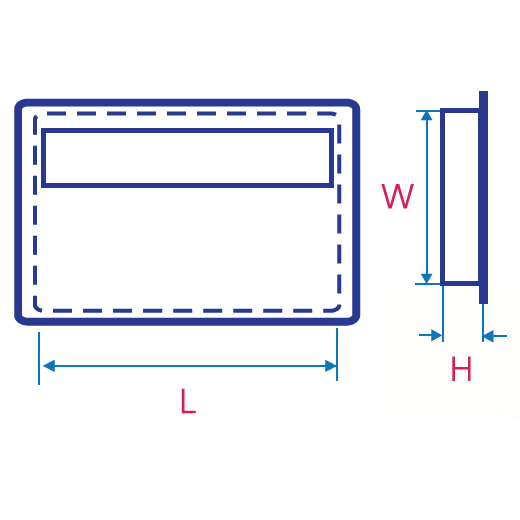

Model	Dimensions(mm)			Magnetic Field Distance
Model	L	W	H	Magnetic Field Distance
YCL-FP-2517	250	175	51	60
YCL-FP-1912	190	125	51	60
YCL-FP-3022	300	225	76	120
YCL-FP-2546	250	175	46	120
YCL-FP-4511	450	360	111	150
YCL-FP-3024	330	240	56	150

•Support customization

Spout Magnet Plate:

Model	Dimensions(mm)			Magnetic Field Distance
Model	L	W	H	Magnetic Field Distance
YCL-SMP-2517	250	175	51	60
YCL-SMP-1912	190	125	36	60
YCL-SMP-3022	300	225	76	120
YCL-SMP-2546	250	175	46	120
YCL-SMP-4511	450	360	111	150
YCL-SMP-3024	330	240	56	150

•Support customization

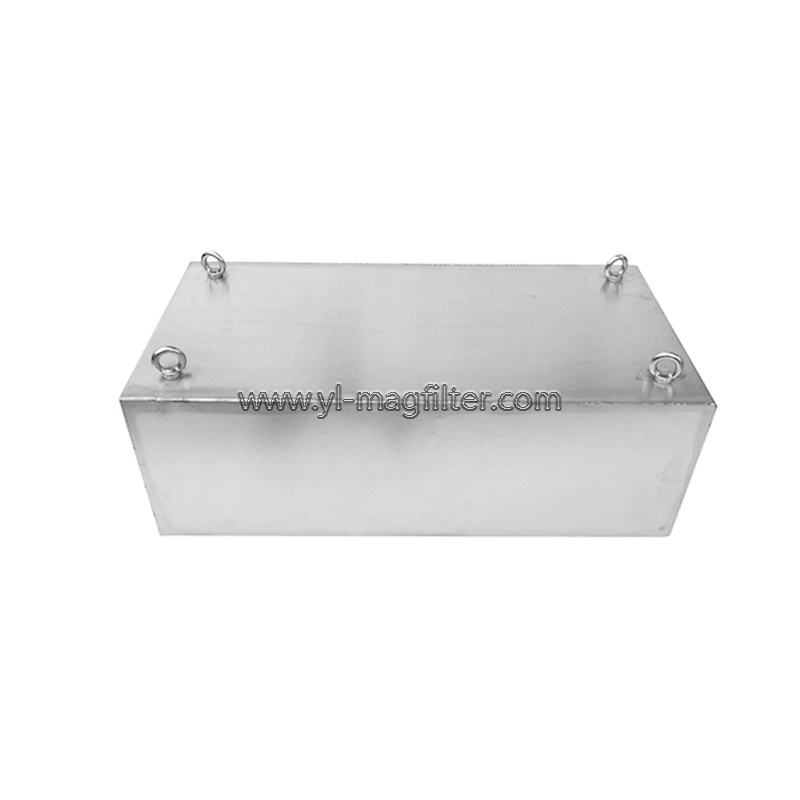

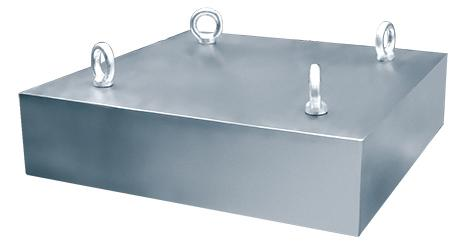

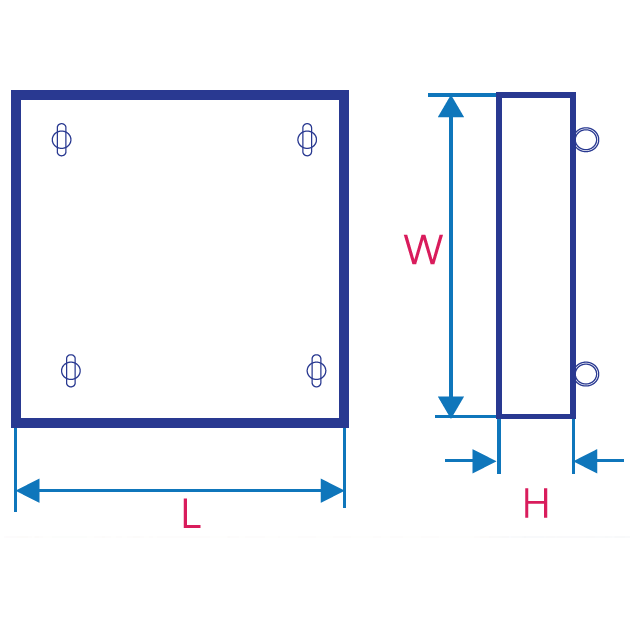

Suspended Plate Magnet:

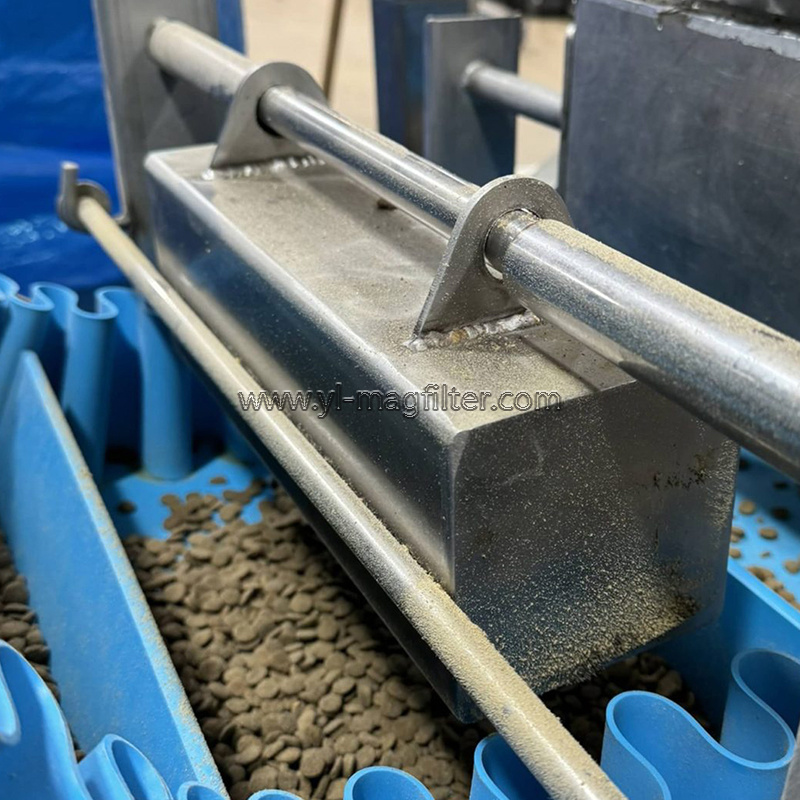

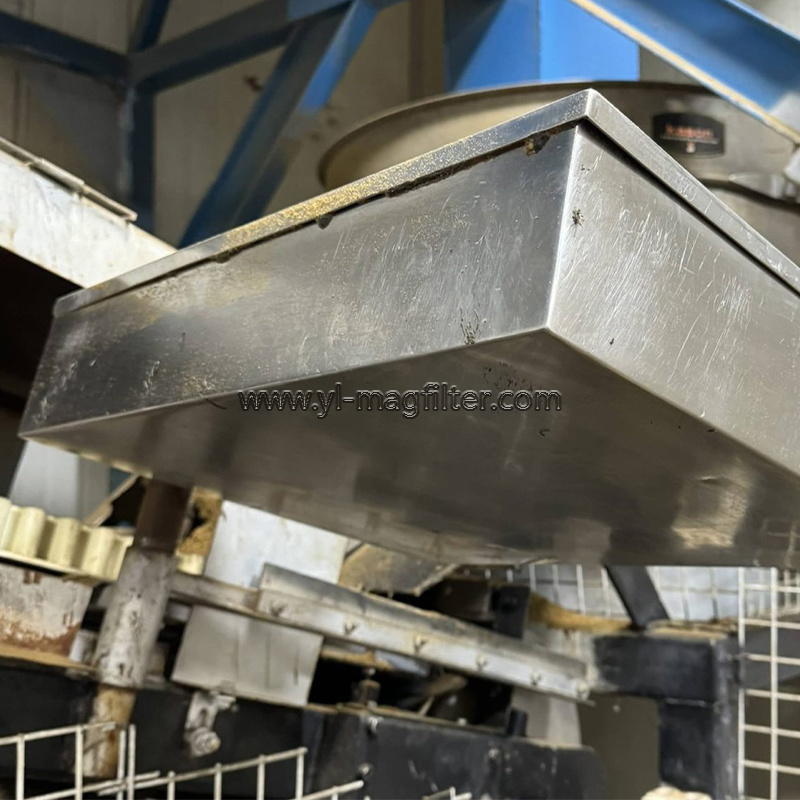

The Suspended Plate Magnet is primarily used on belt conveyors. With its threaded mounting holes and ring bolts on the back, it can be securely suspended on the conveyor belt using ropes or chains, or it can be bolted directly to the machine. It is capable of attracting larger ferrous impurities from high-volume material flow over a relatively long distance.

Model	Dimensuion(mm)			Magnetic Field Distance
Model	L	W	H	Magnetic Field Distance
YCL-SPM-4040	400	400	180	60
YCL-SPM-5050	500	500	180	60
YCL-SPM-6060	600	600	250	200
YCL-SPM-7070	700	700	250	200
YCL-SPM-8080	800	800	350	220
YCL-SPM-9090	900	900	350	220
