Plate House Magnet
Email:
Fsylcd@fsylcd.com
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Applications:
Plate Housing Magnet are widely used in the field of food, pharmacy, tobacco, chemical, etc. To remove tramp iron and ferrous fines from flow-resistant bulk materials that are easy block. The stainless steel housings can be easily installed in enclosed spouting line or directly mounted on processing equipment.
Features:

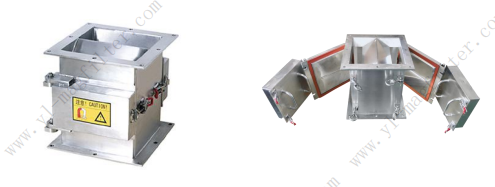

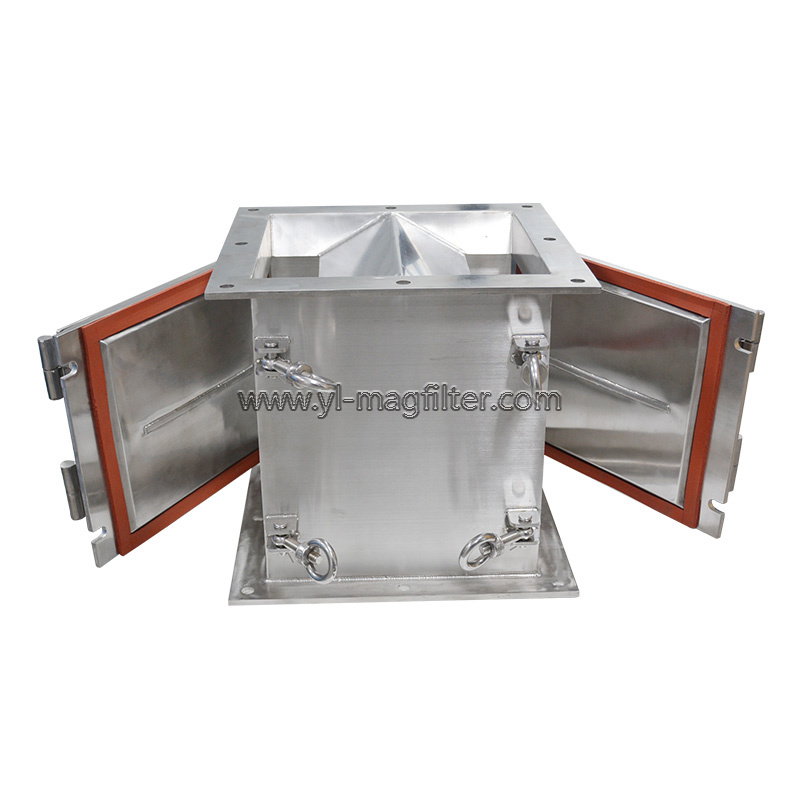

1. Plate Housing Magnet are hinged to the housing like doors which is easy cleaning. 2. A wedge-shaped baffle at the top of the housing can prevent materials from bridging and choking and also can break up the caked material which makes the material flow through the surface of two powerful plate magnets. 3. With high power rare earth magnet, Plate Housing Magnet ensure to grab all sizes of contamination firmly. 4. Custom made is available for inlet, outlet and any other special requirements.
Optional Features Surface finishing Fine polishing,satin finish or sandblasting,food grade standard is attainable. Frames and housing material SUS304,SUS316,SUS316L Magnet Rare-earth magnet or Ferrite Magnetic strength 10,000Gs~15,000Gs Working temperature(℃) ≤80,100,120,150,180,350 •Welcome to customize.

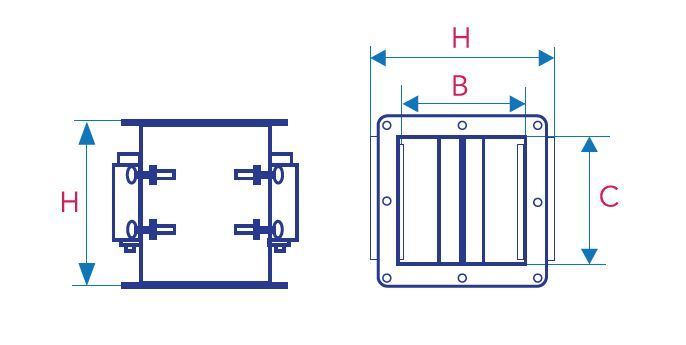

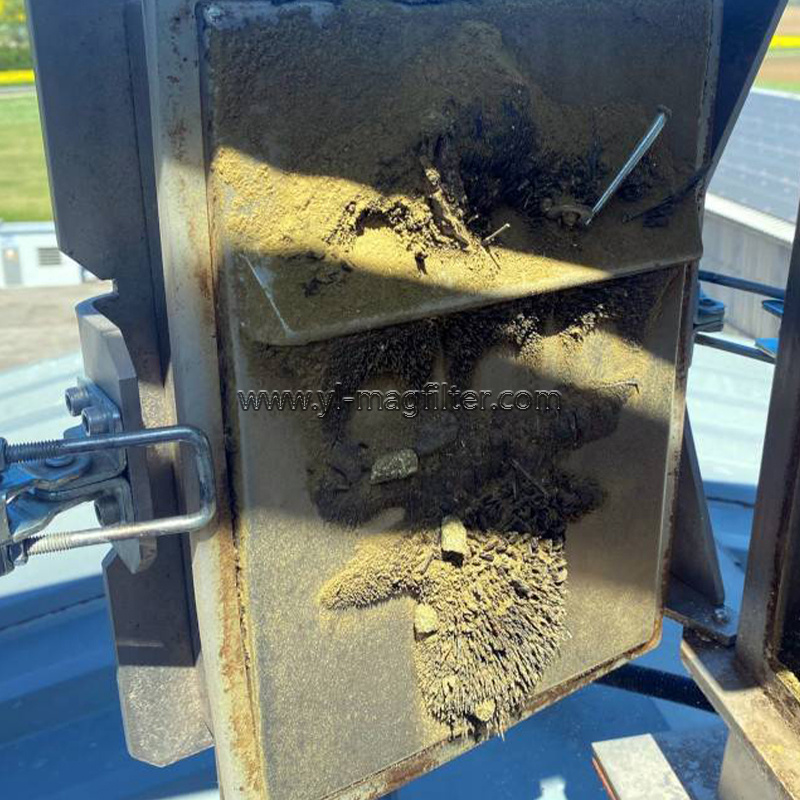

Model Dimensuion(mm) Weight(Kg) B C H YCL-PHM-1528 150 280 220 22 YCL-PHM-2030 200 330 220 30 YCL-PHM-2538 250 380 320 39 YCL-PHM-3038 300 380 320 52 YCL-PHM-3543 350 430 350 72 Product Case:
For non-standard sizes, please contact us via email at: yalimagfilter@gmail.com
