Product Description

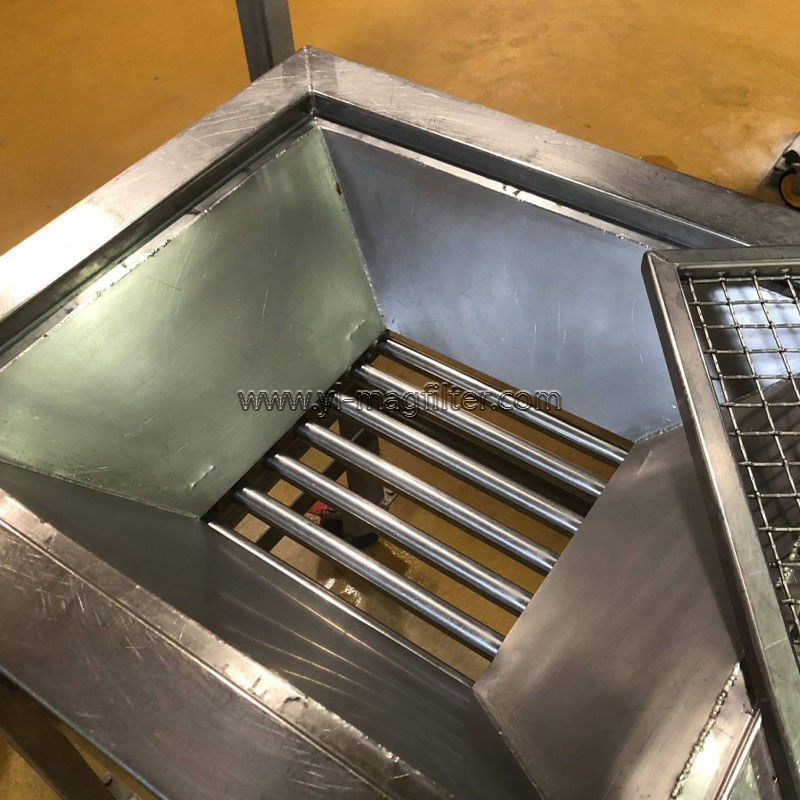

Magnetic drawer is constructed by a group of magnetic grates and housing. It would be one layer or multiple layers inside the housing which depends on the material condition. Usually, it is installed into the pipeline.

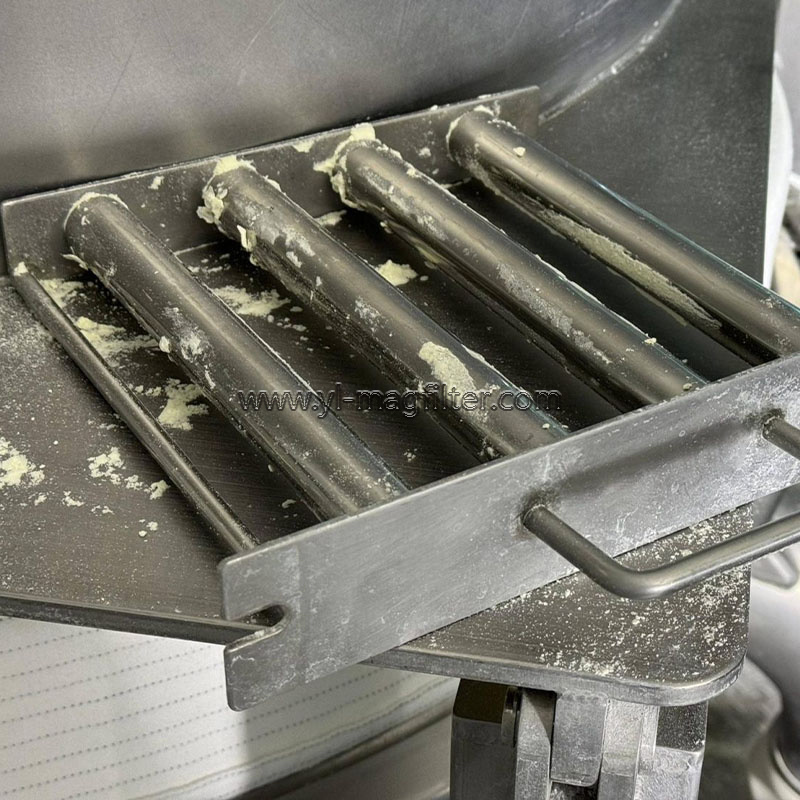

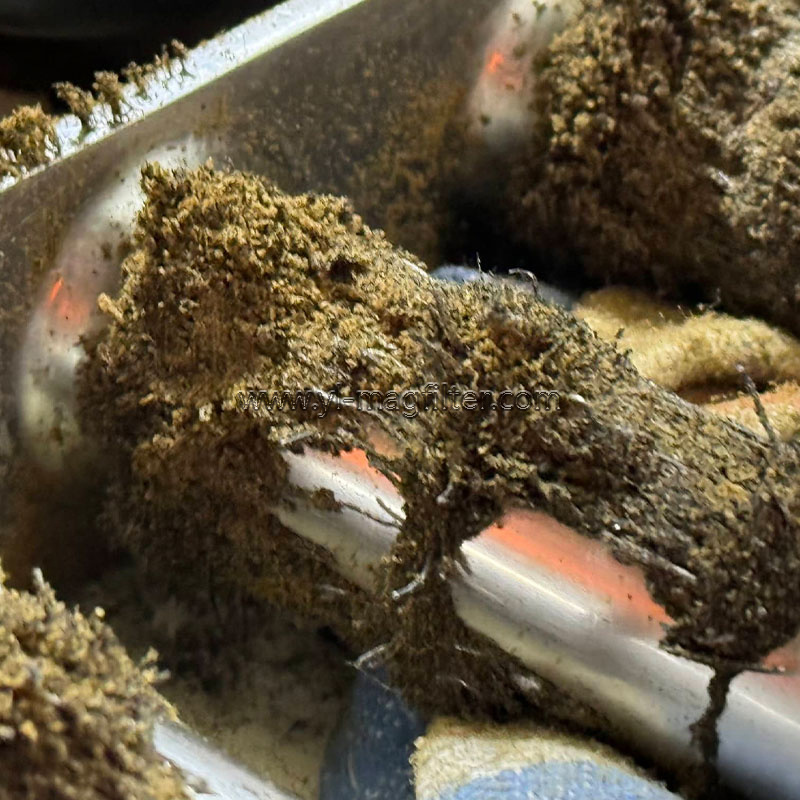

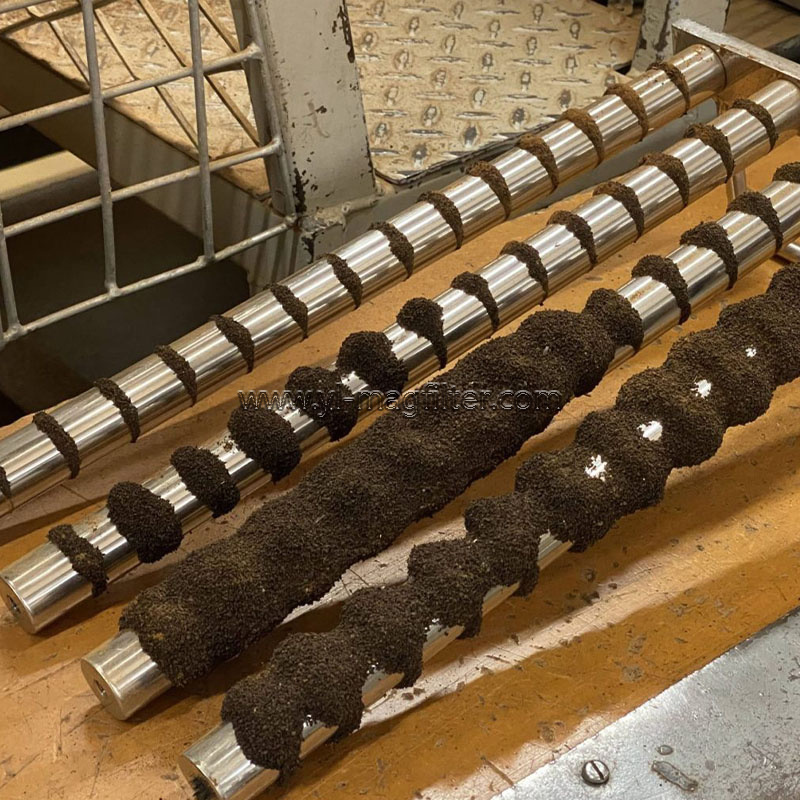

Magnetic drawer is ideal for removing medium and fine ferrous contaminants from a range of dry free-flowing products. They are widely used in food industry and chemical industry. Magnetic bars inside housing emit high magnetic field across the gaps between them. When material flows into the top of the housing, it is forced to cascade in a zig-zag pattern from row to row over the magnetic tubes, which ensures maximum tramp metal be captured since the product comes in direct and repeated contact with a magnet as it passes through the housing.

Optional Features
Surface finishing	Fine polishing,satin finish or sandblasting,food grade standard is attainable.
Frames and housing material	SUS304,SUS316,SUS316L
Magnet	Rare-earth magnet or Ferrite
Magnetic strength	2000Gs~14000Gs
Working temperature(℃)	≤80,100,120,150,180,200,300,350
Various designs available	Standard type,easy clean type,one layer,mutilayer
Sizes and Shapes	Any sizes and any shapes,such as square,rectangle,round,oval,triangle,rhombus or irregular polygon.

•Welcome to customize.

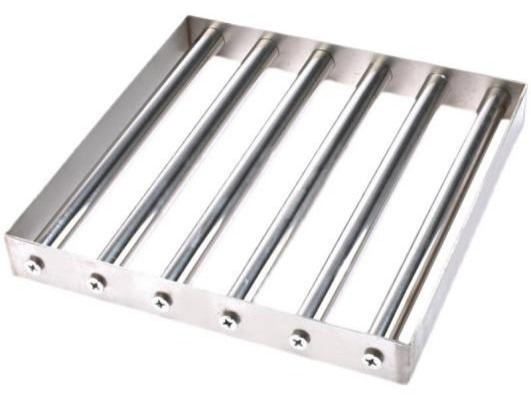

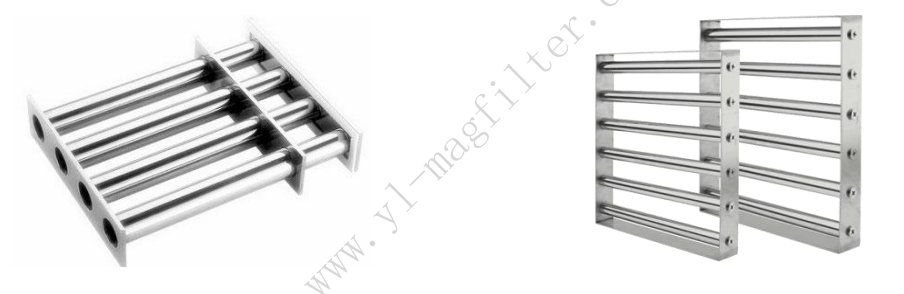

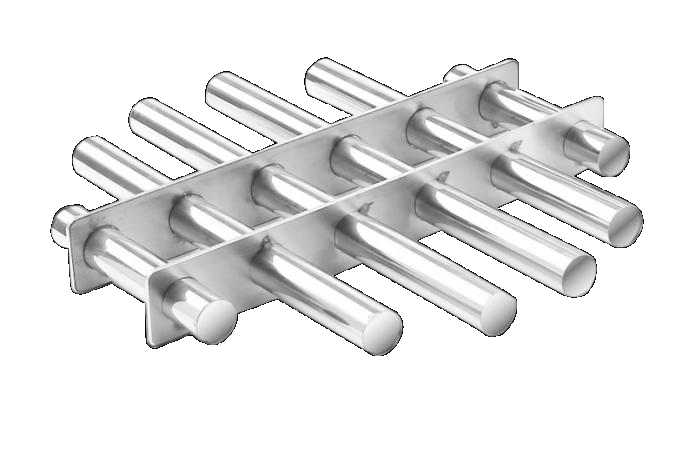

Square Shape Magnetic Grate:

Model	Dimensuion(mm)			No. Of bars	Weight(Kg)
Model	L	W	H	No. Of bars	Weight(Kg)
YCL10/10S	150	150	50	2	3.2
YCL15/15S	200	200	50	3	3.8
YCL20/20S	250	250	50	4	6.2
YCL25/25S	300	300	50	5	8.0
YCL30/30S	350	350	50	6	11.0
YCL35/35S	400	400	50	7	14.8
YCL40/40S	450	450	50	8	19.2
YCL45/45S	500	500	50	9	21.0
YCL50/50S	550	550	50	10	27.0

Round Shape Magnetic Grate:

Model	Diameter(mm)		No. of bars	Weight(Kg)
Model	L	W	No. of bars	Weight(Kg)
YCL10/10S	150	45	2	1.2
YCL15/15S	200	50	3	1.5
YCL20/20S	250	60	4	2.2
YCL25/25S	300	60	5	3.7
YCL30/30S	350	60	6	5.0
YCL35/35S	400	60	7	7.0
YCL40/40S	450	60	8	9.5
YCL45/45S	500	60	9	14.0
YCL50/50S	550	60	10	17.0
