Product Description

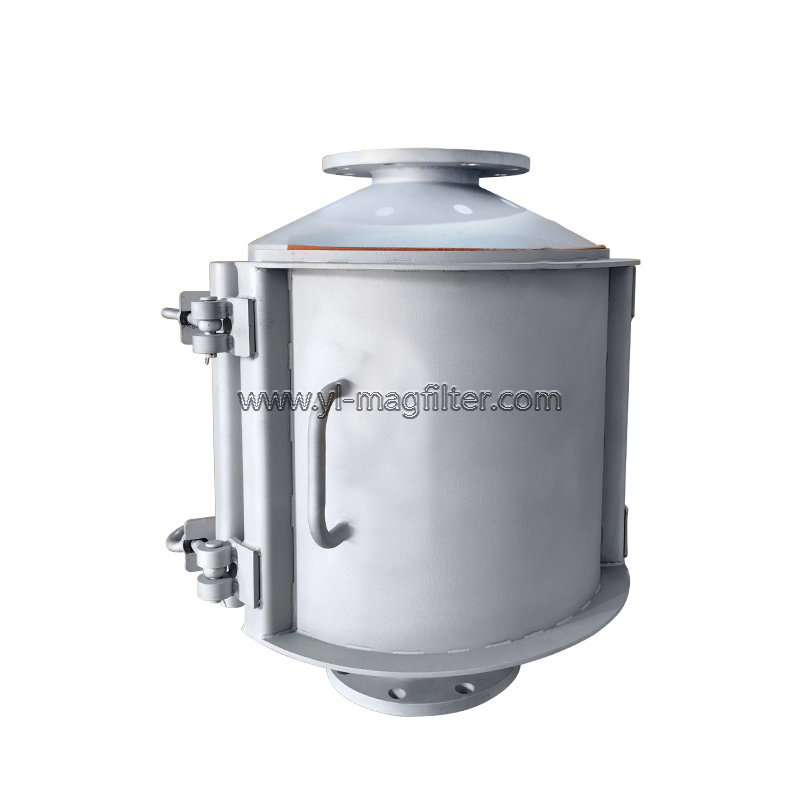

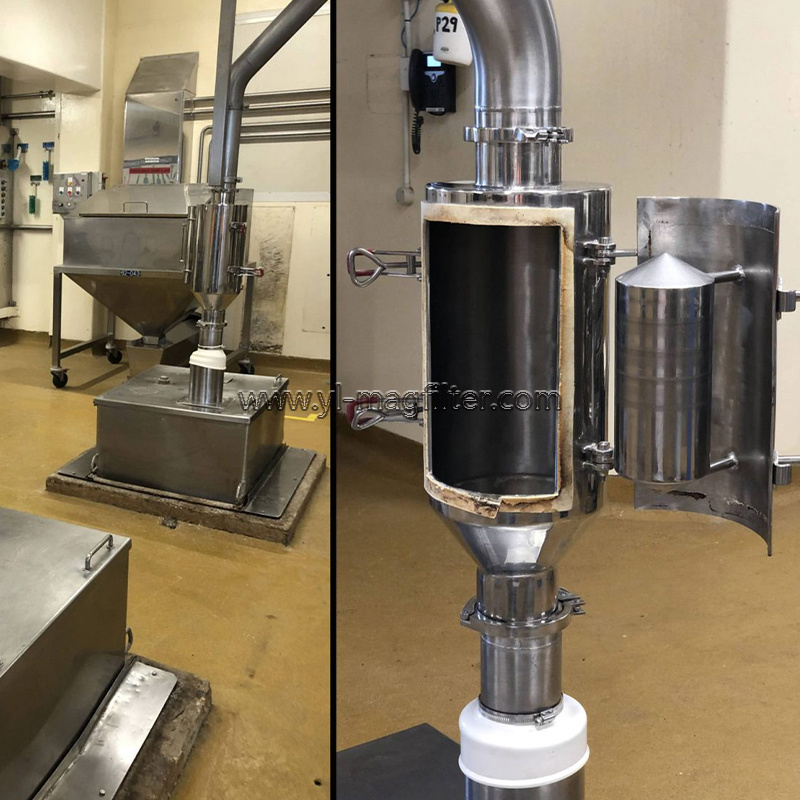

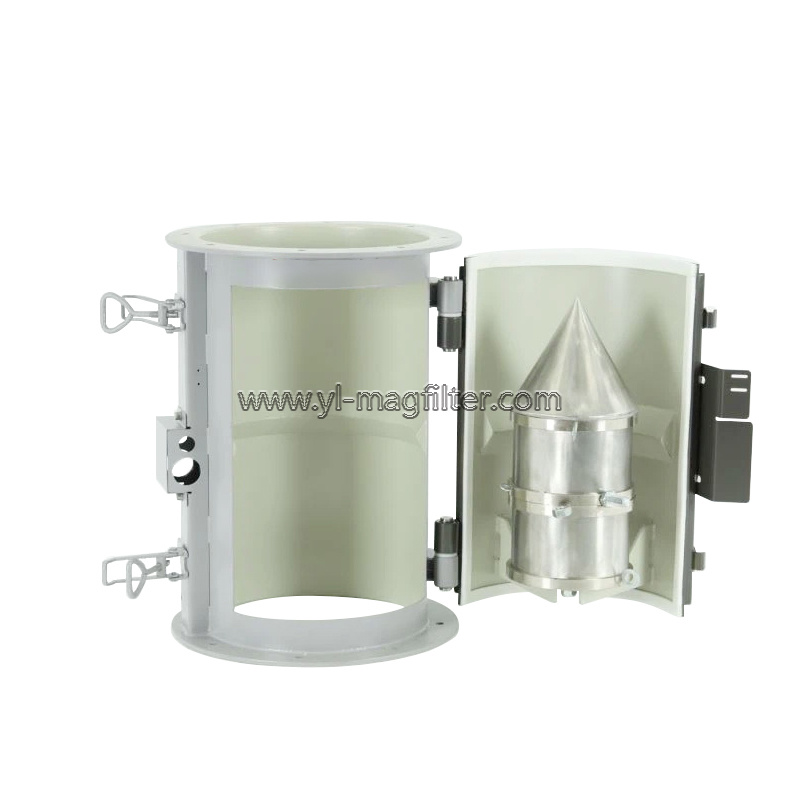

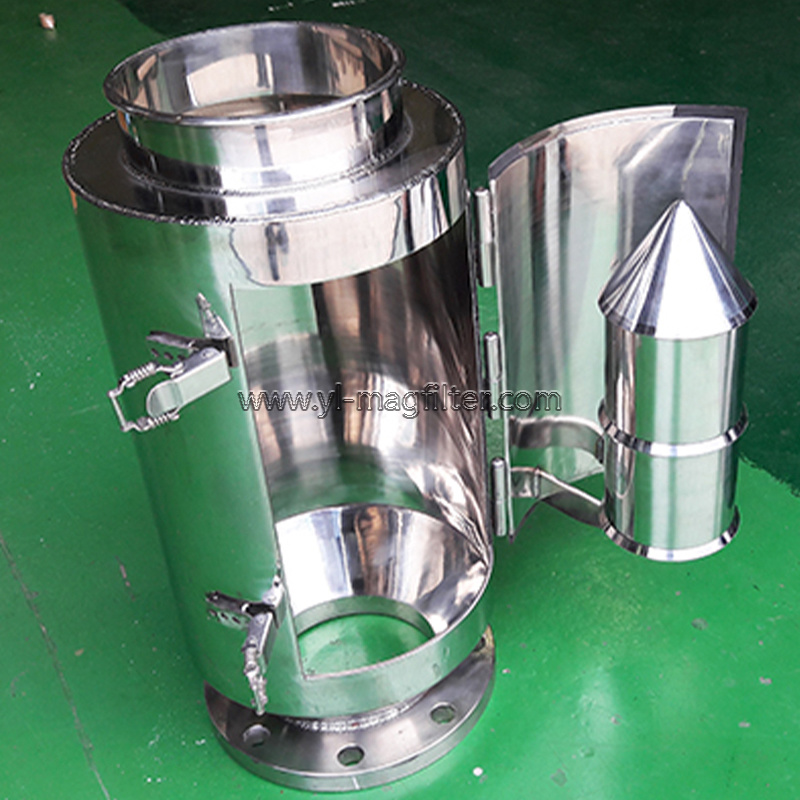

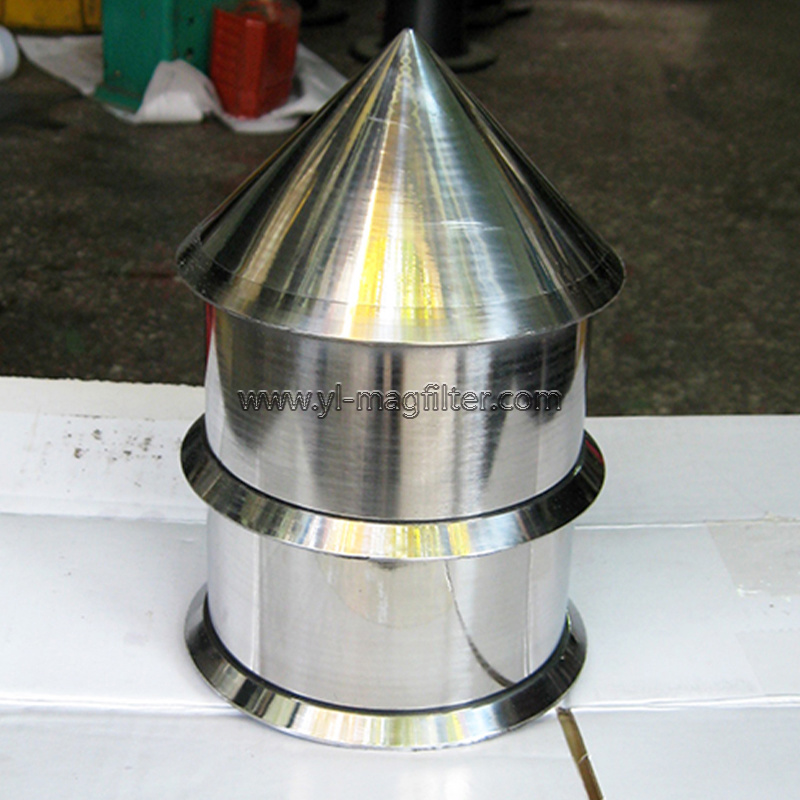

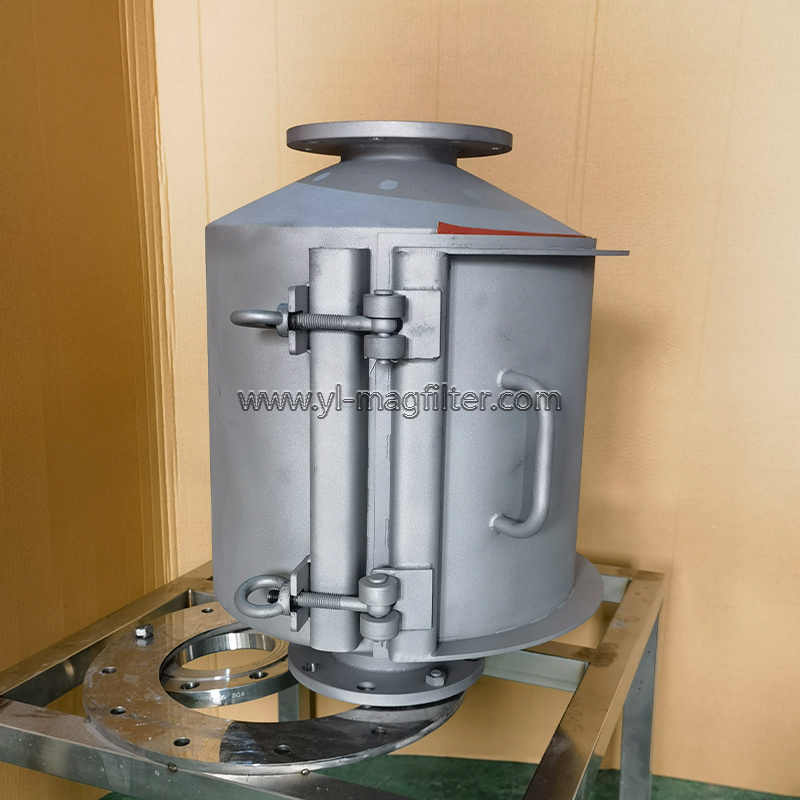

Bullet magnet is constructed by a magnetic cone in the central within a stainless steel housing outside. Cone shape ensures smooth flowing volume. High-intensity magnet makes the cone concentrate strong strength to capture the iron tramps perfectly. Bullet magnet separator is designed to remove relative larger pieces of iron tramps like nuts, bolts and nails to avoid damage to the downstream machines. This equipment is usually installed in gravity and pneumatical pipelines. It is applicative to all the powder and granular products which are dry. Such as grain, powder and feed etc.

Optional Features
Surface finishing	Fine polishing,satin finish or sandblasting,food grade standard is attainable.
Frames and housing material	SUS304,SUS316,SUS316L
Magnet	Rare-earth magnet or Ferrite
Magnetic strength	10,000Gs~14,000Gs
Working temperature(℃)	≤80,100,120,150,180,200
Type of mounting	Flange, quick release clamp or pipe

•Welcome to customize.

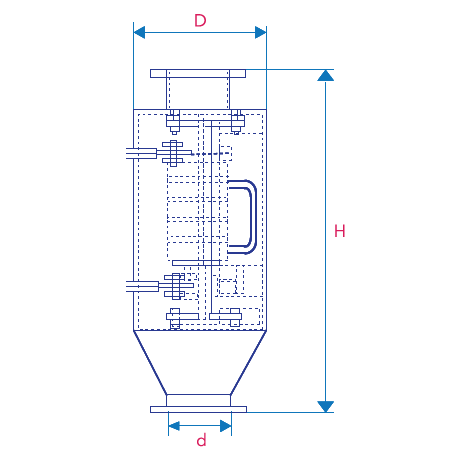

Model	Dimensions(mm)			Weight(Kg)
Model	d	D	H	Weight(Kg)
YCL075	75	200	490	24
YCL100	100	225	490	32
YCL125	125	250	550	42
YCL150	150	275	550	56
YCL175	175	300	640	76
YCL200	200	325	640	56
YCL250	250	375	710	76
