Product Description

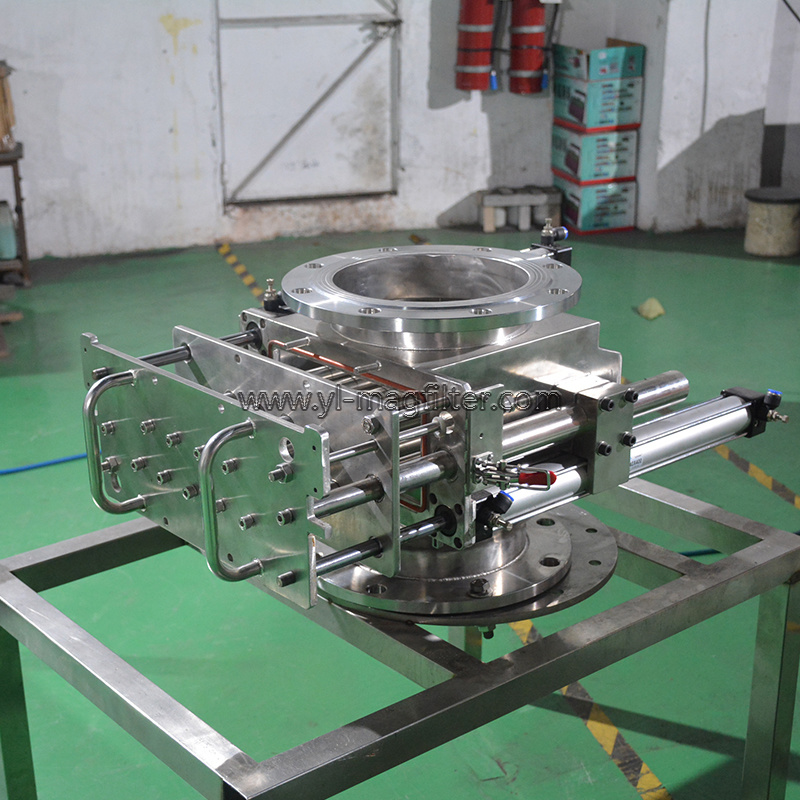

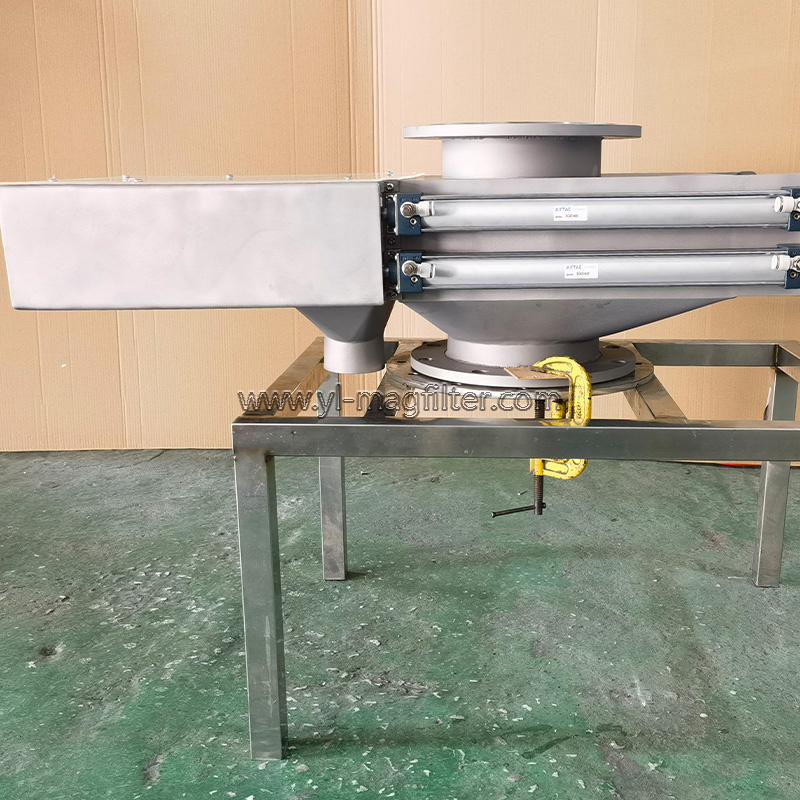

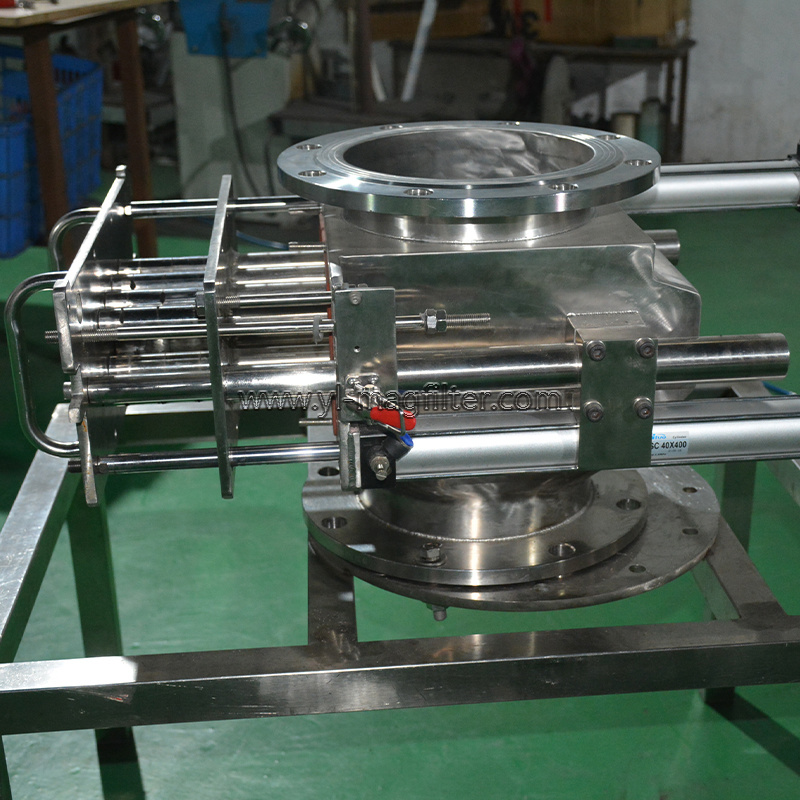

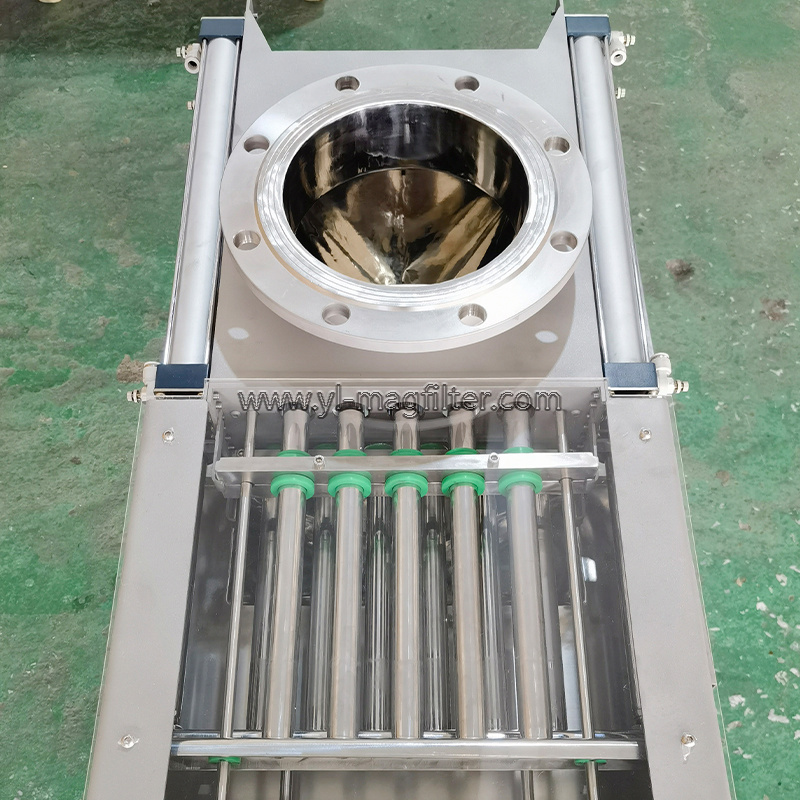

Pneumatic Magnetic Separator automatically attracts and removes ferrous impurities. It is primarily designed for materials with high ferromagnetic content that require frequent cleaning. Iron discharge is convenient and rapid. The pneumatic cylinder sequentially retracts the magnetic rods layer by layer, causing the captured magnetic material to automatically detach. The separator operates continuously, extracting rods one by one. During the discharge process, material feeding can continue uninterrupted, eliminating the need to halt the input flow.

Optional Features
Surface finishing	Fine polishing,satin finish or sandblasting,food grade standard is attainable.
Frames and housing material	SUS304,SUS316,SUS316L
Magnet	Rare-earth magnet or Ferrite
Magnetic strength	10000Gs~14000Gs
Working temperature(℃)	≤80,100,120,150,180,200,300,350
Type of mounting	Round or Square, flange type

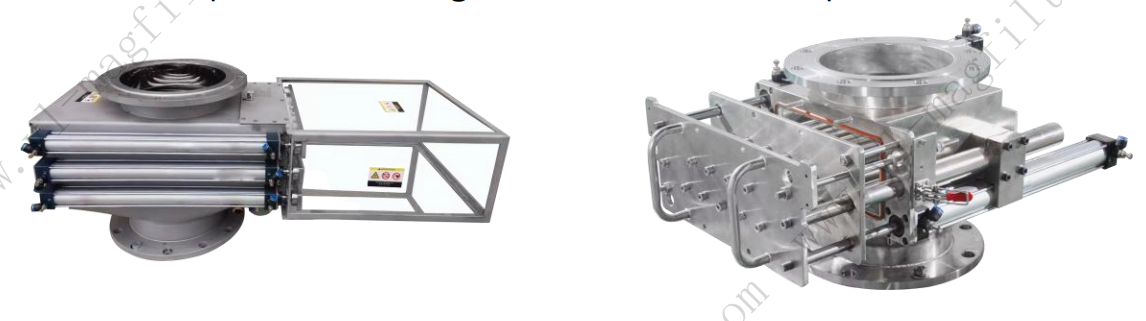

Various designs available	one layer, multilayer

•Welcome to customize

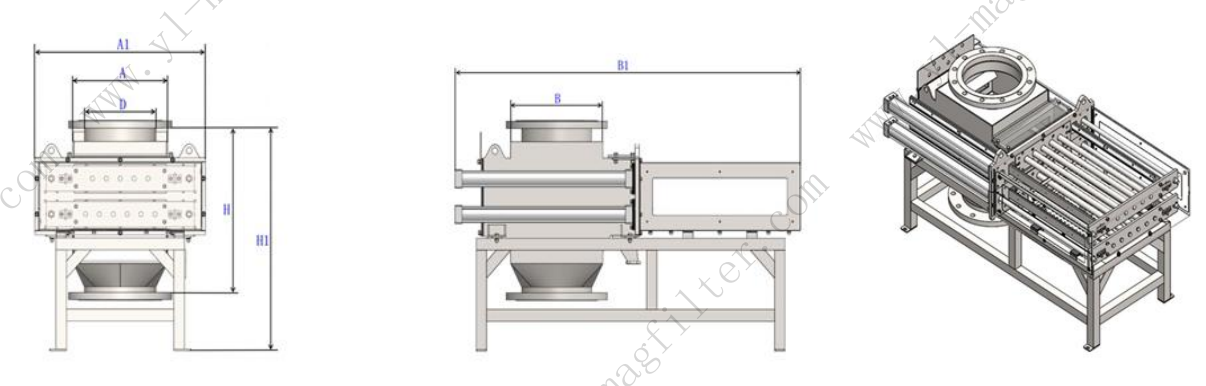

Model	Dimensuion(mm)							Capacity（m3/h）
Model	Interface Specification	D	A	B	H	A1	H1	Capacity（m3/h）
YCL-SMP-2517	DN150	159	256	254	550	544	700	3.5
YCL-SMP-1912	DN200	219	309	307	550	597	700	6
YCL-SMP-3022	DN250	273	362	360	559	650	700	10
YCL-SMP-2546	DN300	325	415	413	550	756	700	14
YCL-SMP-4511	DN350	377	468	466	550	756	700	18
YCL-SMP-3024	DN400	426	521	519	550	809	700	24
