Product Description

he magnet inside the plate magnet is usually Ferrite or rare-earth magnet. They are assembled regularly to optimize high-performance. To meet customers’ particular requirement, we have multiple designs applicable to different product volume, flowing speed and production line.

Optional Features
Surface finishing	Fine polishing, satin finish or sandblasting, food grade standard is attainable.
Frames and housing material	SUS304, SUS316, SUS316L
Magnet	Rare-earth magnet or Ferrite.
Magnetic strength	2000Gs ~ 14000Gs
Working temperature (℃)	≤80, 100, 120, 150, 180, 200, 250, 300, 350

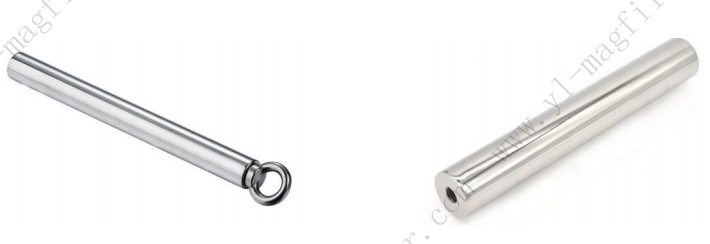

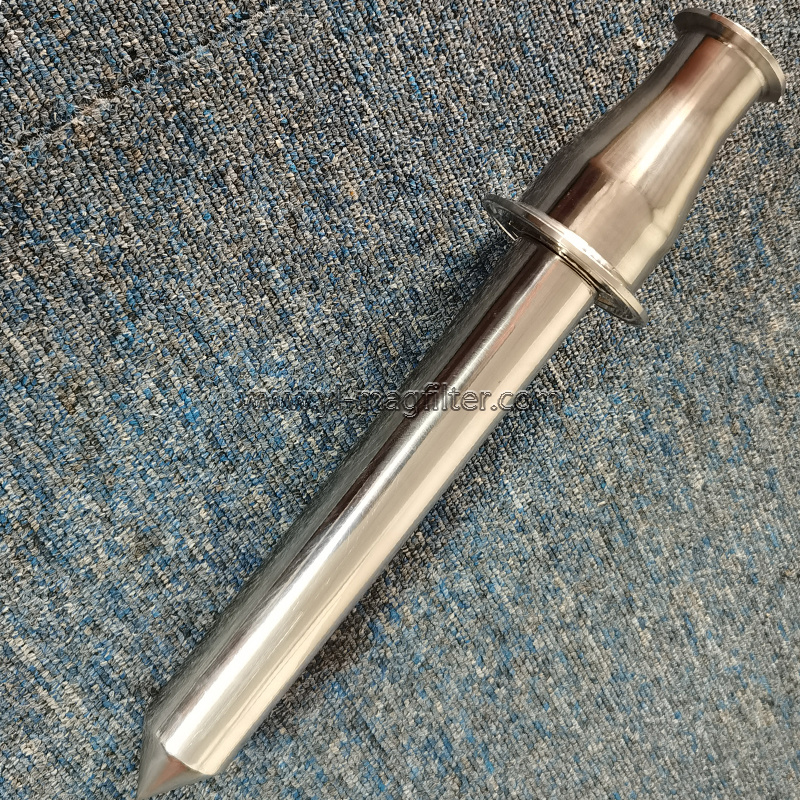

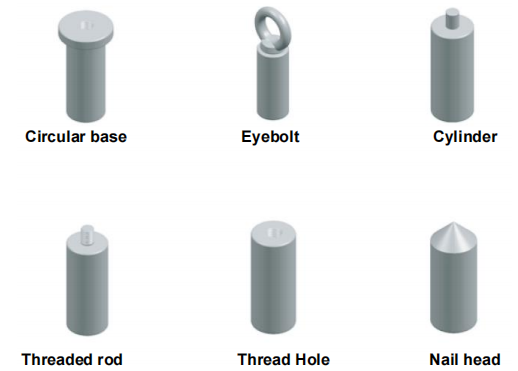

Type of ends	Circular base, eyebolt, cylinder, thread rod, threaded hole, nail head.
Sizes	Standard 25 mm in diameter with any length up to 2500 mm.
Other common diameter(mm)	10, 16, 19, 20, 22, 23, 25, 28, 32, 38, 50, 76, 89, 100

•Welcome to customize

Diameter	Magnetic Force（GS）
MM	2500	6000	8000	9000	10000	11000	12000	13000	1400
Φ10	V	V	-	-	-	-	-	-	-
Φ16	V	V	V	-	-	-	-	-	-
Φ19	V	V	V	V	V	V	V	-	-
Φ20	V	V	V	V	V	V	V	-	-
Φ22	V	V	V	V	V	V	V	-	-
Φ23	V	V	V	V	V	V	V	-	-
Φ25	V	V	V	V	V	V	V	V	V
Φ28	V	V	V	V	V	V	V	V	V
Φ32	V	V	V	V	V	V	V	V	V
Φ38	V	V	V	V	V	V	V	V	V
Φ50	V	V	V	V	V	V	V	V	V
Φ76	V	V	V	V	V	V	V	V	V
Φ100	V	V	V	V	V	V	V	V	V
