Magnetic Liquid Trap
Email:
Fsylcd@fsylcd.com
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-

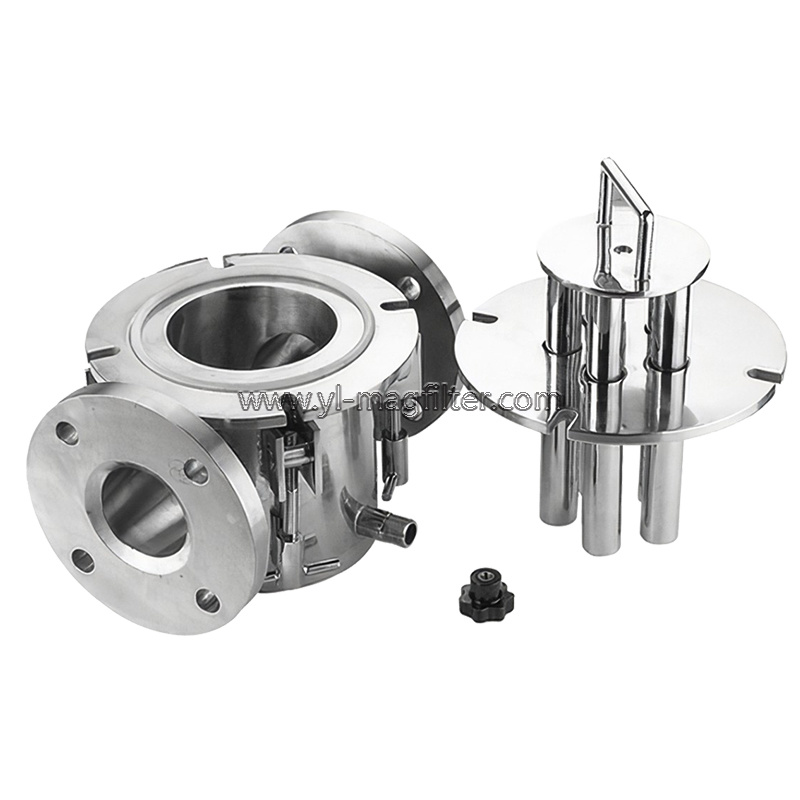

Magnetic liquid traps consist of a group of magnetic bars and stainless steel housing outside. An inlet and outlet make it possible to connect with existing processing line by various connection types. Magnetic liquid traps are designed to extract the ferrous material from the liquid, semi-liquid and air conveying powder in order to purify the material in the production process. Strong magnetic tubes inside the housing filtrate the flow and pick out the unwanted ferrous metal. The unit is simply mounted to the existing pipeline via flanged or threaded ends. Easy access is also possible using the quick release clamp.

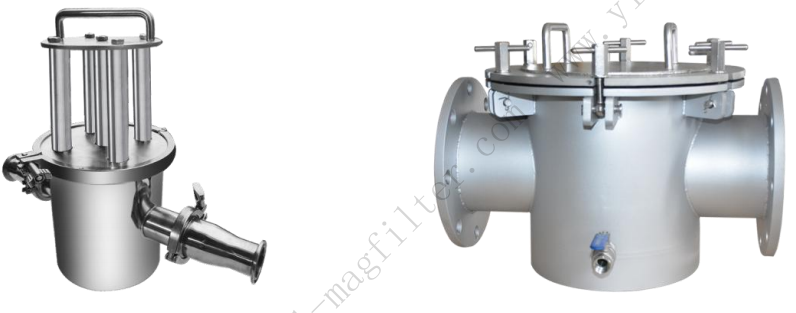

Optional Features Surface finishing Fine polishing,satin finish or sandblasting,food grade standard is attainable. Frames and housing material SUS304,SUS316,SUS316L Magnet Rare-earth magnet or Ferrite Magnetic strength 2000Gs~14000Gs Working temperature(℃) ≤80,100,120,150,180,200,300,350 Installation type Quick release clamp, flange Various designs available Easy clean type, one layer, multilayer •Welcome to customize

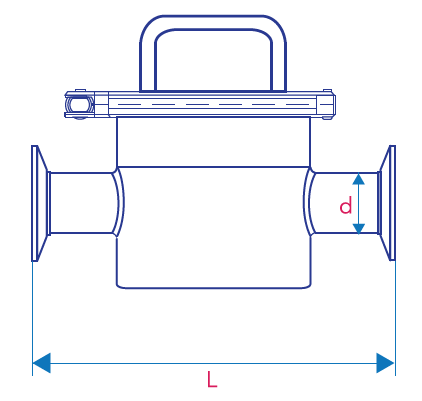

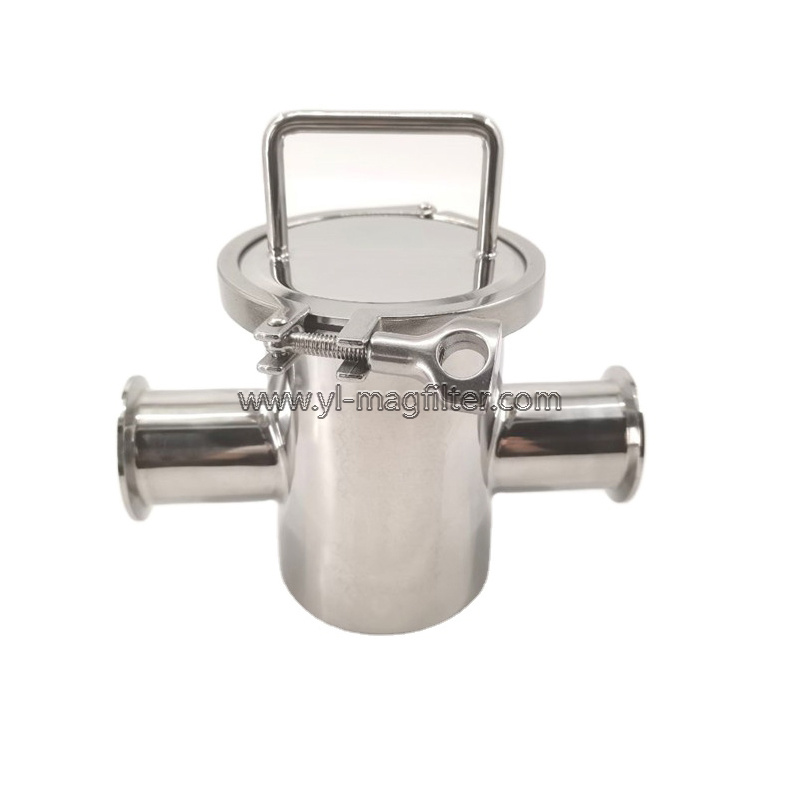

Quick Release Clamp Style:

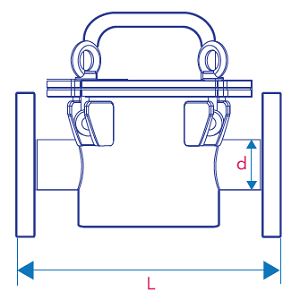

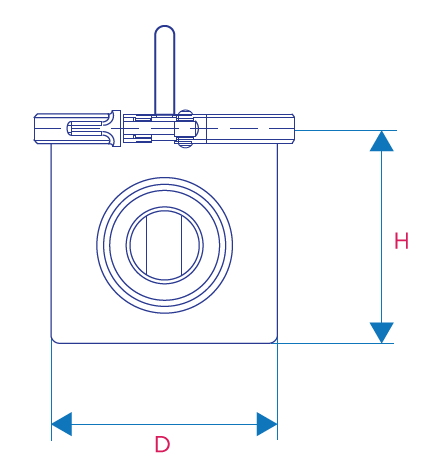

Model Dimensuion(mm) Number Of Bars D d H L YCL-100/25 100 25 150 170 3 YCL-150/25 159 25 150 300 5 YCL-150/76 159 76 150 300 5 YCL-200/25 219 25 200 360 7 YCL-200/38 219 38 200 360 7 •Welcome to customize

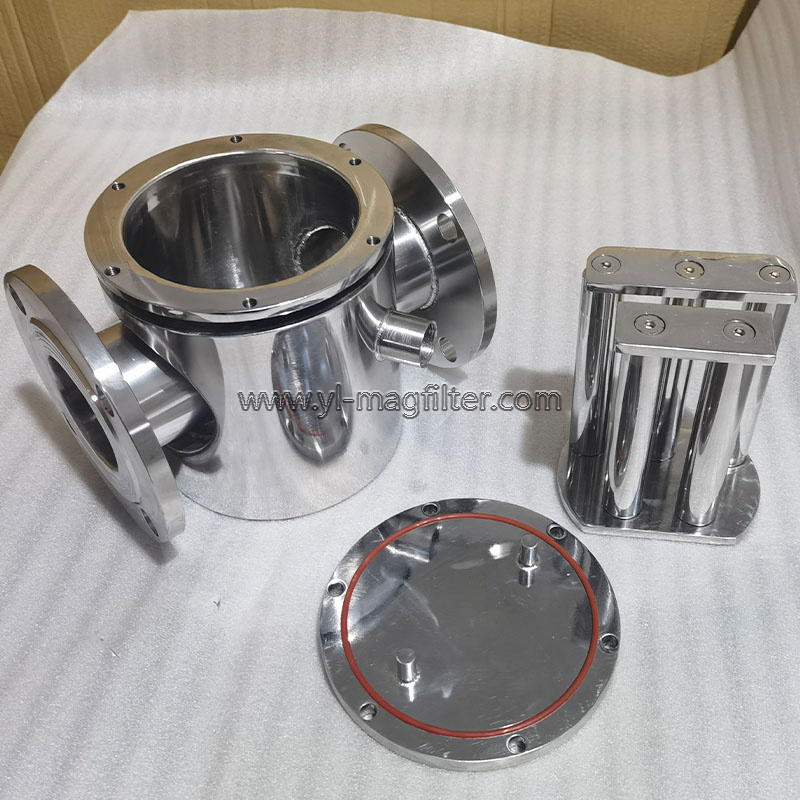

Flange Style:
Model Dimensuion(mm) No. Of Bars D d H L YCL-150/25 280 230 220 300 5 YCL-150/40 159 48 150 300 5 YCL-200/50 219 57 200 350 7 YCL-250/100 250 108 250 400 7 YCL-300/150 300 159 300 450 9 •Welcome to customize

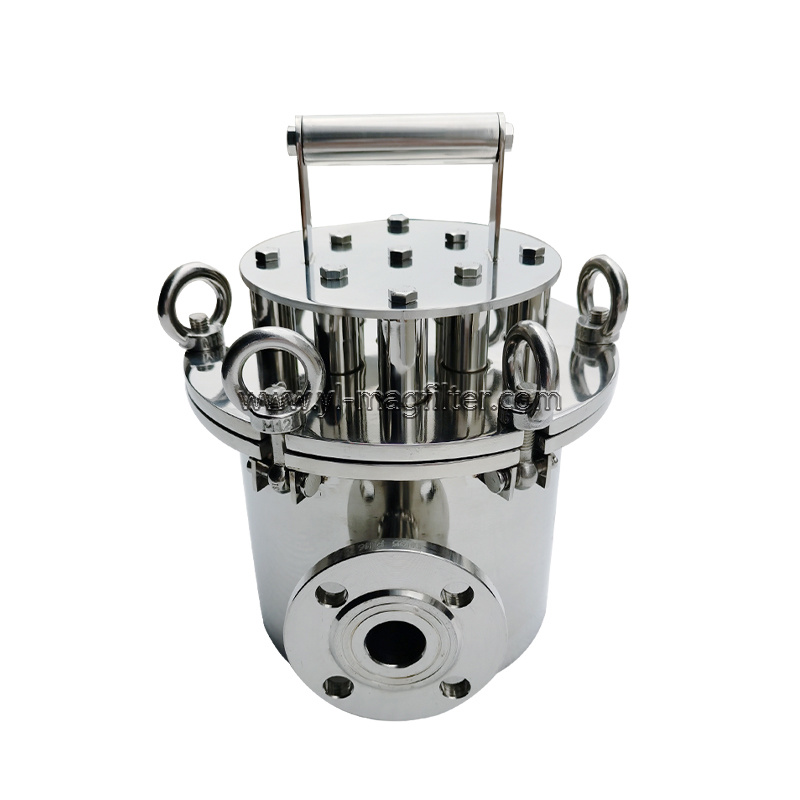

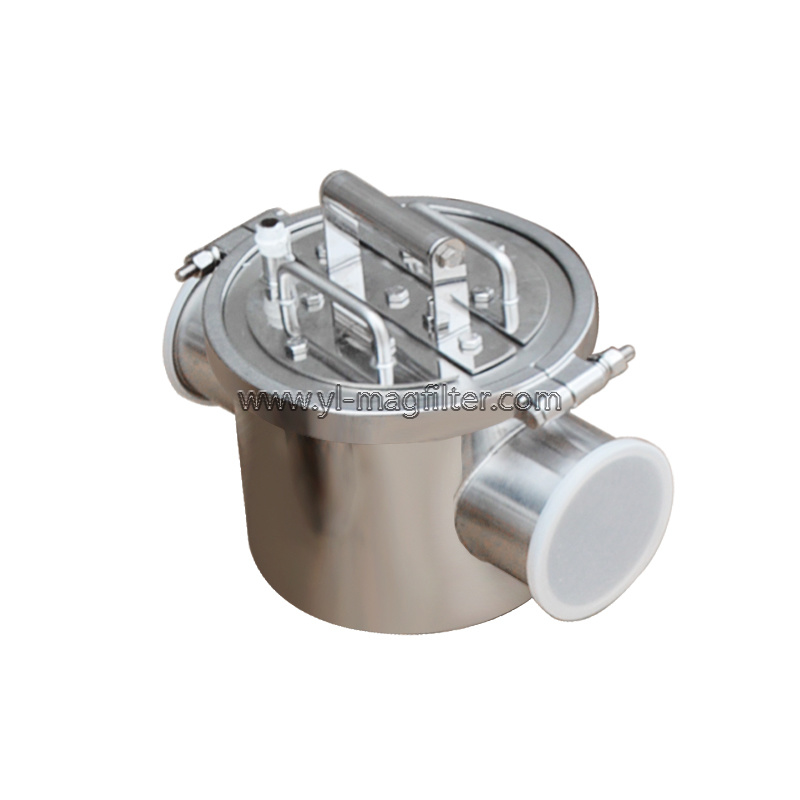

Insulation Style:
Insulation Style magnetic separator with a compartment structure, can be filled with steam, water, oil and other insulation materials to maintain or increase the temperature of the fluid, prevent fluid solidification, increase the filtration speed of the viscous liquid, or meet the next process temperature requirements. It is used in the processing of liquid, slurry, gas and powder through air pipes. It is widely used in food, pharmaceutical, fine chemical, paper, lithium battery, ceramic and other industries.

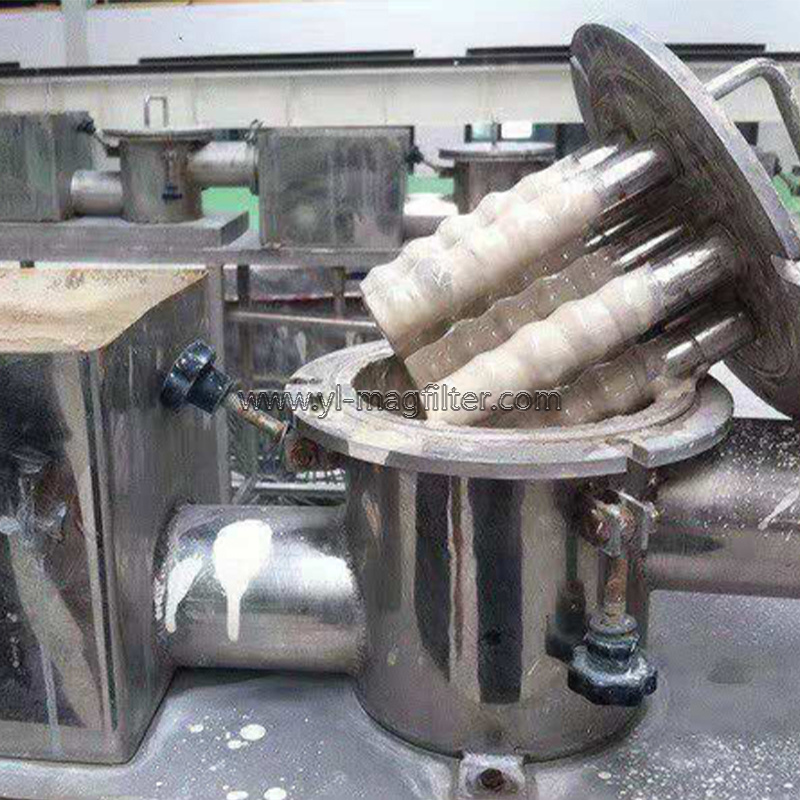

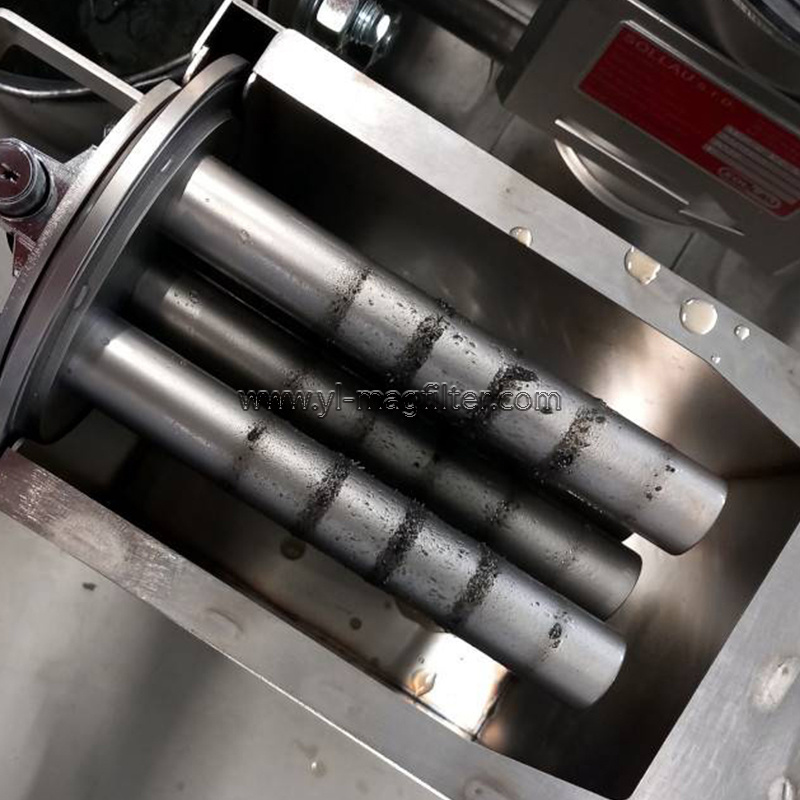

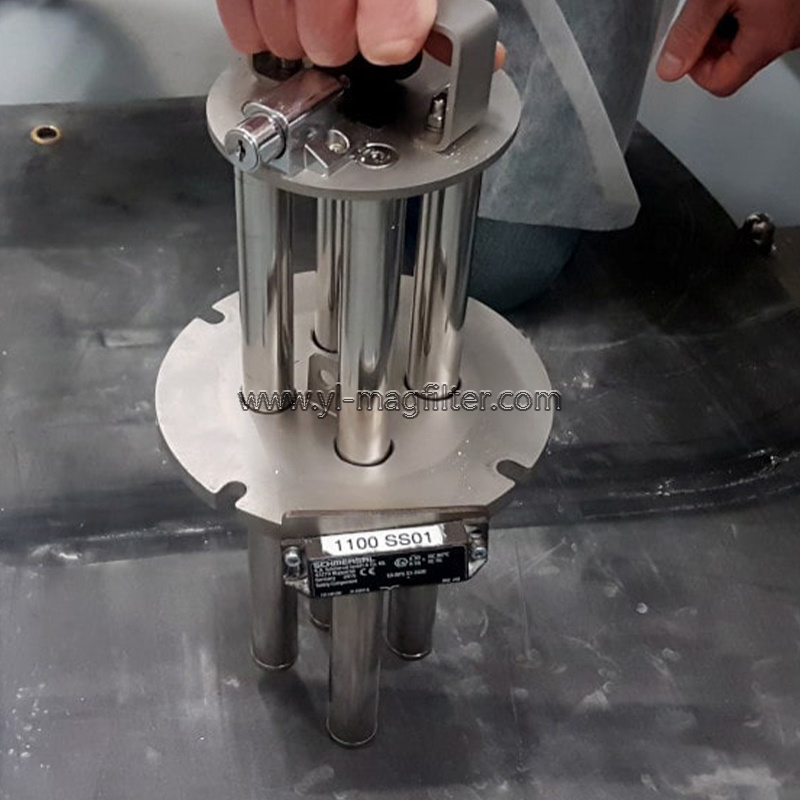

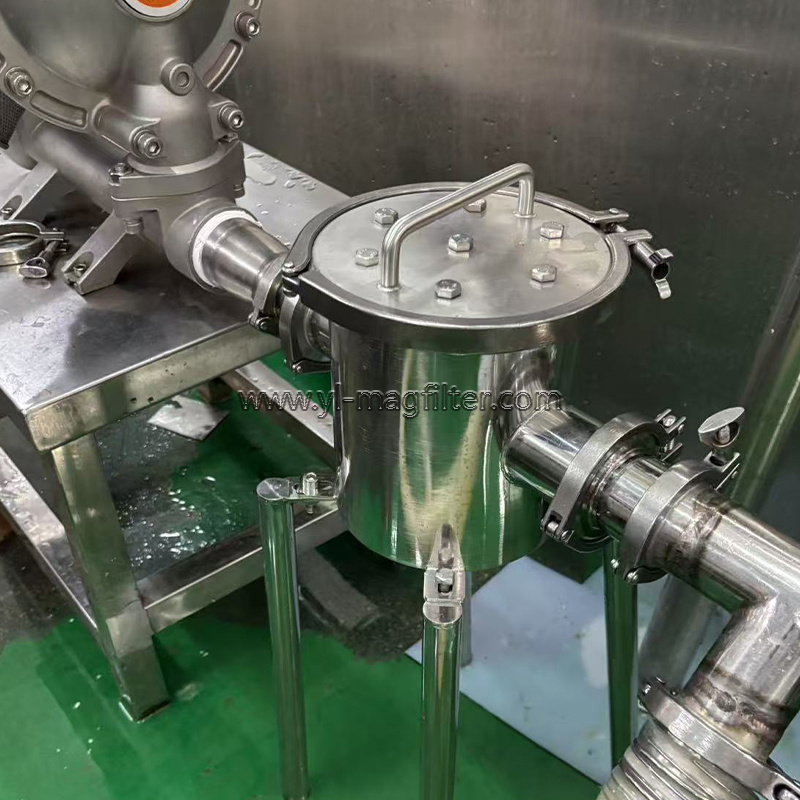

Product Case:
