- Product Description
-
The Automatic Slurry Magnetic Separator extracts liquid containing iron impurities from a storage tank. During passage through the separator's filter cylinder, a powerful magnetic field traps and isolates the ferrous contaminants. Once the magnetic field reaches saturation, the system automatically triggers a cleaning cycle: the magnetic core rises, releasing the captured iron particles. These impurities are then redirected via a three-way valve into a collection unit. Additionally, users can schedule automatic cleaning cycles at predetermined intervals.
Features:
• Applicable to high-viscosity food products including juices, ham products, sausages, jams, minced meat, condiments, and dairy
• Installed in transfer conduits across processing stages, capturing ferrous contaminants via high-intensity magnetic fields during pipeline transfer
• Sanitary-grade compliance certified for food and pharmaceutical applications
Optional Features Surface finishing Fine polishing,satin finish or sandblasting,food grade standard is attainable. Frames and housing material SUS304,SUS316,SUS316L Magnet Rare-earth magnet or Ferrite Magnetic strength 8,000~14,000Gs Working temperature(℃) ≤80,100,120,150,180,200,300,350 •Welcome to customize
Standard Automatic Slurry Magnetic Separator:
Model Dimensuion(mm) Number of magnetic bars Recommended flow rate (liters/minute) A B C YCLSCF-52 35.7 130 114 6 500 YCLSCF-53 50.8 130 114 8 1200 YCLSCF-54 50.8 155 140 12 2000 •Welcome to customize

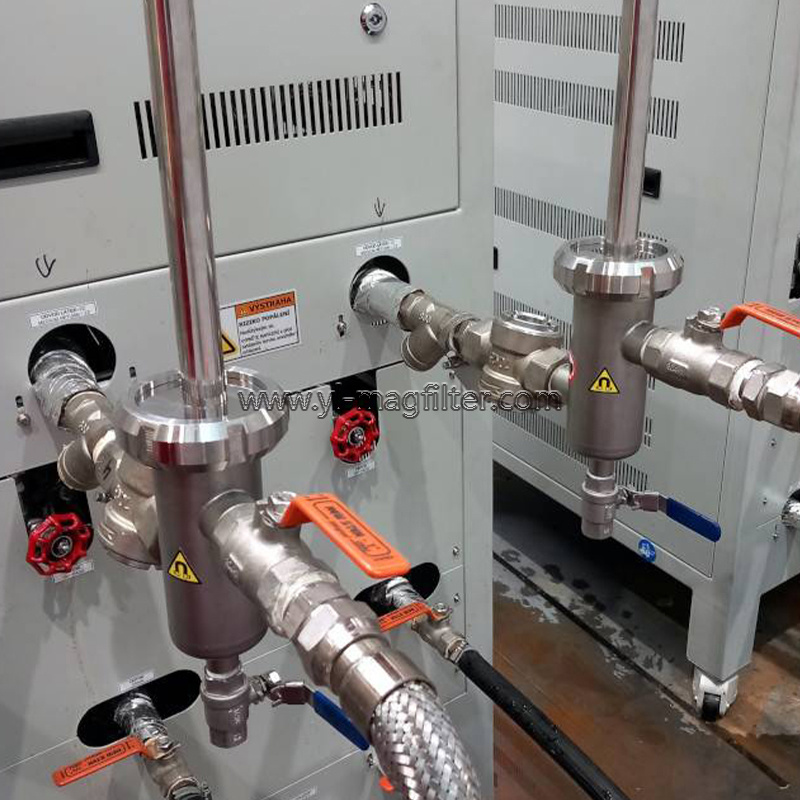

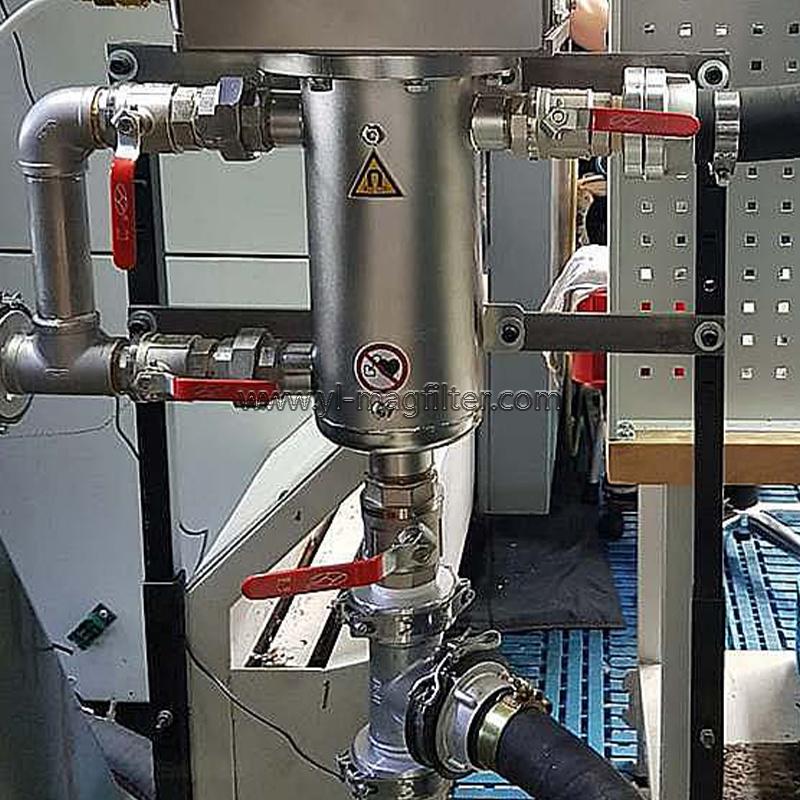

Product Case:
For non-standard sizes, please contact us via email at: yalimagfilter@gmail.com
