Product Description

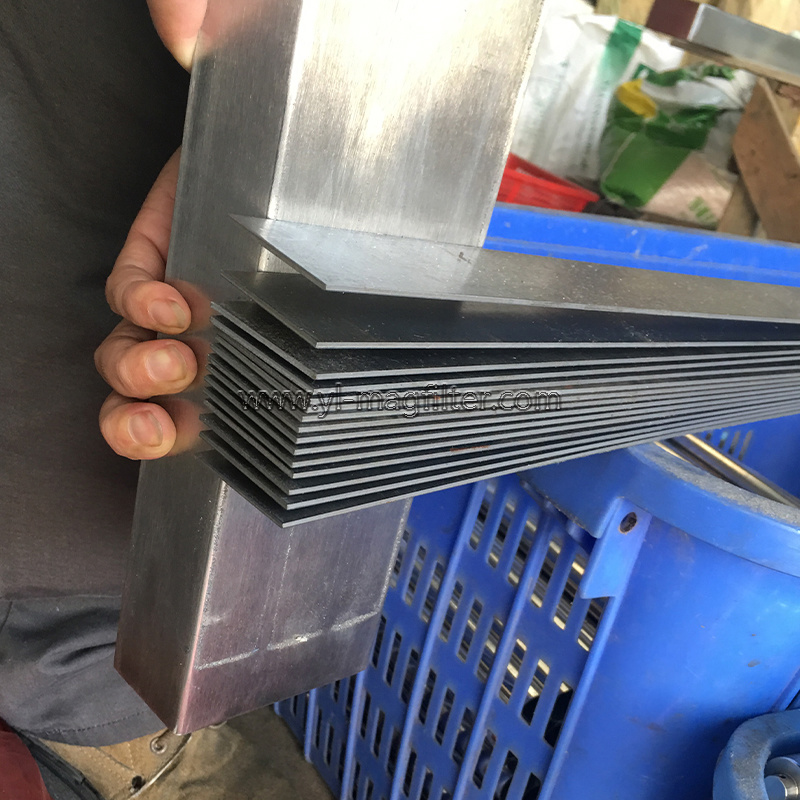

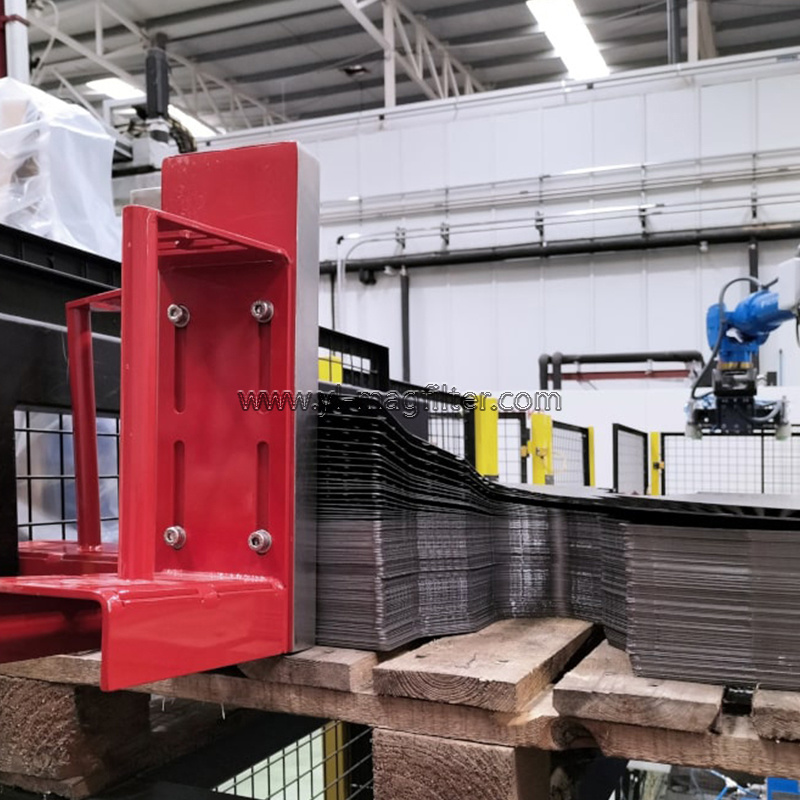

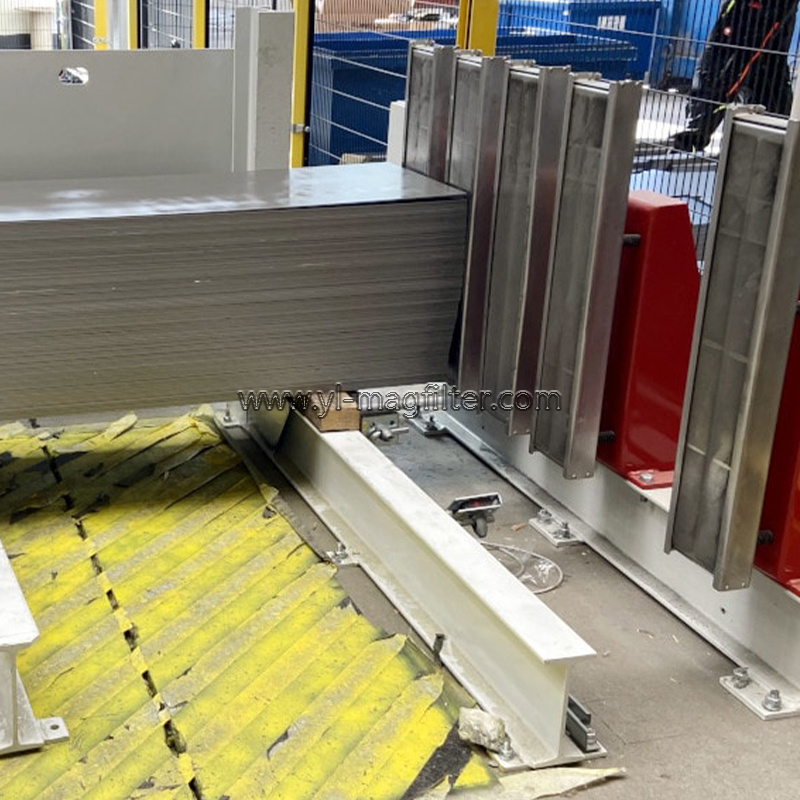

Magnetic Sheet Separators are specifically engineered for efficient separation of oil-coated or adhesive steel sheets, effectively preventing multi-sheet pickup to ensure uninterrupted production flow. Utilizing permanent magnet technology, these systems deliver constant magnetic force without dependence on costly compressed air systems. Compared to conventional methods, they achieve 60%+ reduction in total operating costs while accelerating separation cycles - making them the proven solution for enhanced productivity and operational economy.

Optional Features
Surface finishing	Fine polishing,satin finish or sandblasting
Frames and housing material	SUS304,SUS316,SUS316L
Magnet	Rare-earth magnet or Ferrite
Magnetic strength	8,000Gs~14,000Gs
Working temperature(℃)	≤80,100,120,150,180,200

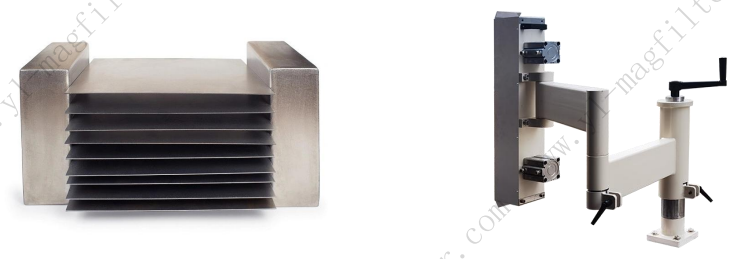

Installation Types	Square, Circular, Swing-Arm

•Welcome to customize

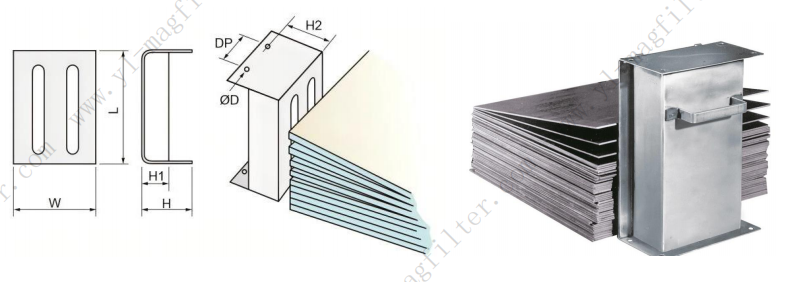

Model	Dimensuion(mm)v							Weight（KG）
Model	L	W	H	H1	H2	DP	φD	Weight（KG）
YCL-MSP-1	130	125	65	35	53	85	8	2
YCL-MSP-2	210	155	65	35	53	80	8	3.8
YCL-MSP-3	250	215	75	47	60	150	11	12
YCL-MSP-4	87	74	55	35	45	35	8	1
YCL-MSP-5	87	133	60	35	50	56	8	2.2
